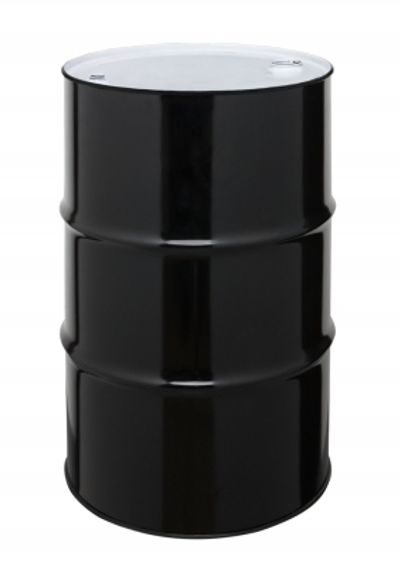

Tight Head Steel Drums
Capacity and Diameter
5gallon 14" diameter
8gallon 14" diameter
10gallon 14" diameter
16gallon 14" diameter
20gallon 18.25" diameter
30gallon 18.25" diameter
55gallon 22.5" diameter
Interior
Unlined, Rust Inhibitor, or Lined
Linings available:
L-1 Clear/Non-Pigmented Phenolic (Gold)
L-5X Pigmented Phenolic (Olive Drab)
L-15 Pigmented Phenolic Epoxy Lining(Dark Brown or Dark Red)
L-31 Clear Phenolic Epoxy (Gold)
L-35 Pigmented Epoxy Phenolic (Buff)
L-40 Clear/Non-Pigmented Epoxy Phenolic Size Coat and Rust Inhibitor (Clear)
Exterior
Black, White, Blue, Red, Orange, Yellow, Green, Grey, Silver, as well as many other custom colors
Closures
Trisure 2" and 3/4" Steel Flange with Steel, Poly, or Nylon Plugs
Rieke 2" and 3/4" Steel or Nylon Flange with Steel, Poly, or Nylon Plugs
Plug Gaskets available: Buna, White EPDM, Poly, Poly Irradiated, Teflon, or Viton
Construction and Performance
20 Gauge to 16 Guage
Standard or ISO W-Hoop
UN Certified for Packaging Groups I(X-Rated), II (Y-Rated), and III(Z-Rated) For Liquids
Steel and Plastic Drums in Baltimore Steel and Plastic Drums in Philadelphia Steel and Plastic Drums in Newark
Open Head Steel Drums
Capacity and Diameter
5gallon 14" diameter
8gallon 14" diameter
10gallon 14" diameter
16gallon 14" diameter
20gallon 18.25" diameter
30gallon 18.25" diameter
55gallon 22.5" diameter
85gallon 26" diameter
110gallon 30" diameter
Interior
Unlined, Rust Inhibitor, or Lined
Linings available:
L-1 Clear/Non-Pigmented Phenolic (Gold)
L-5X Pigmented Phenolic (Olive Drab)
L-15 Pigmented Phenolic Epoxy Lining(Dark Brown or Dark Red)
L-31 Clear Phenolic Epoxy (Gold)
L-35 Pigmented Epoxy Phenolic (Buff)
L-40 Clear/Non-Pigmented Epoxy Phenolic Size Coat and Rust Inhibitor (Clear)
Exterior
Black, White, Blue, Red, Orange, Yellow, Green, Grey, Silver, as well as many other custom colors
Closures
Trisure 2" and 3/4" Steel Flange with Steel, Poly, or Nylon Plugs
Rieke 2" and 3/4" Steel or Nylon Flange with Steel, Poly, or Nylon Plugs
Plug Gaskets available: Buna, White EPDM, Poly, Poly Irradiated, Teflon, or Viton
Ring options: 12Gauge with 5/8 Nut/Bolt(UN), Standard 5/16" Nut/bolt(NON-UN), Lever Lock, and Lever Latch
Construction and Performance
20 Gauge to 16 Guage
Standard or ISO W-Hoop
UN Certified for Packaging Groups I(X-Rated), II (Y-Rated), and III(Z-Rated) For Liquids and Solids
